- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: M25H
- Weight: 2500.000 kg

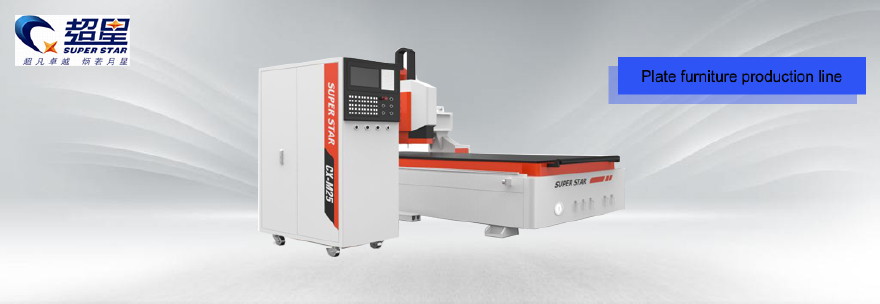

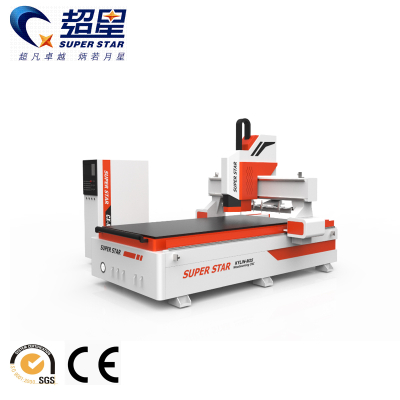

ATC Follow tool change Machining center
Applicable industry and materials of Auto Tool Change Cnc Router :
1. Woodworking industry: classic mahogany furniture products processing.
2. The advertising industry: advertising signs making,sign making, acrylic cutting, plastic molding, a variety of materials of advertising decorative products making.
3. Other Industry: a variety of shadow carving, embossment, widely used in craft gifts industry.
4. It can also be applied to: aluminium board cutting industry, aluminum plate, aluminum-plastic panels, aluminum honeycomb panels, aluminium section, 3D ornamental engraving craft, wave board production.
Performance features of Auto Tool Change Cnc Router :
1.Integral cast iron frame,more durability.
2.Inported all steel linear guide with high precision,ensure machine frame much stability and dutability.
3.High accuracy rolling ball screw from Gemany,assure machine frame of better precision.
4.Handle controlling,not occupying computer resource,one computer can control several equipments.
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc
Product configuration：
Working Area (X*Y*Z) | 1300mm*2500mm*200mm |
Table size | 1300mm*2500mm |
Max.traveling speed | ≥50m/min |
Table | Vacuum |
Carving instructions | G-code*.u00*.mmg*.plt |
Guide rail | Original TBI from Taiwan(Optional) |
Structure for X Y Z axis | Imported ball screw from Taiwan for Z axis , and High-precision helical rack for X and Y axis |
Voltage | AC380V/50HZ |
Spindle power | 9.0KW air cooling spindle((Optional Brand) |
Spindle speed | 0-24000rpm/min |
Driver | Servo (Optional) |
Control system | SYNTEC of Taiwan |
- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: M25H
- Weight: 2500.000 kg
ATC Follow tool change Machining center
Applicable industry and materials of Auto Tool Change Cnc Router :
1. Woodworking industry: classic mahogany furniture products processing.
2. The advertising industry: advertising signs making,sign making, acrylic cutting, plastic molding, a variety of materials of advertising decorative products making.
3. Other Industry: a variety of shadow carving, embossment, widely used in craft gifts industry.
4. It can also be applied to: aluminium board cutting industry, aluminum plate, aluminum-plastic panels, aluminum honeycomb panels, aluminium section, 3D ornamental engraving craft, wave board production.
Performance features of Auto Tool Change Cnc Router :
1.Integral cast iron frame,more durability.
2.Inported all steel linear guide with high precision,ensure machine frame much stability and dutability.
3.High accuracy rolling ball screw from Gemany,assure machine frame of better precision.
4.Handle controlling,not occupying computer resource,one computer can control several equipments.
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc
Product configuration：
Working Area (X*Y*Z) | 1300mm*2500mm*200mm |
Table size | 1300mm*2500mm |
Max.traveling speed | ≥50m/min |
Table | Vacuum |
Carving instructions | G-code*.u00*.mmg*.plt |
Guide rail | Original TBI from Taiwan(Optional) |
Structure for X Y Z axis | Imported ball screw from Taiwan for Z axis , and High-precision helical rack for X and Y axis |
Voltage | AC380V/50HZ |
Spindle power | 9.0KW air cooling spindle((Optional Brand) |
Spindle speed | 0-24000rpm/min |
Driver | Servo (Optional) |
Control system | SYNTEC of Taiwan |
