- Size: 15
- Place of Origin: China
- Brand Name: superstar
- Model Number: CXM1325H
- Weight: 2000.000 kg
- :
- :

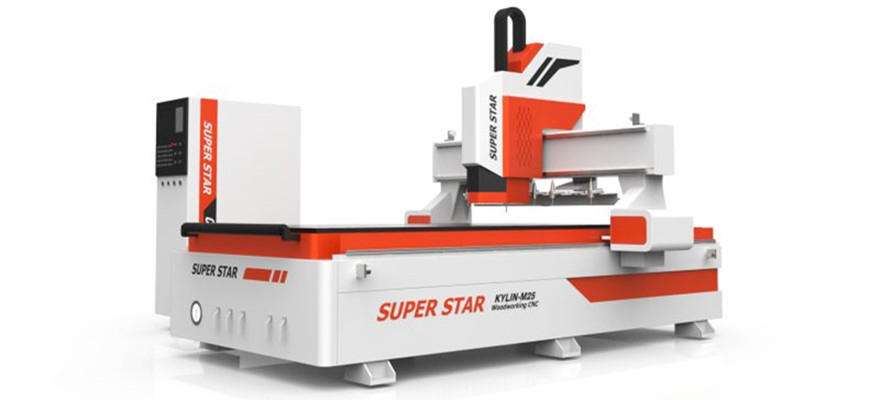

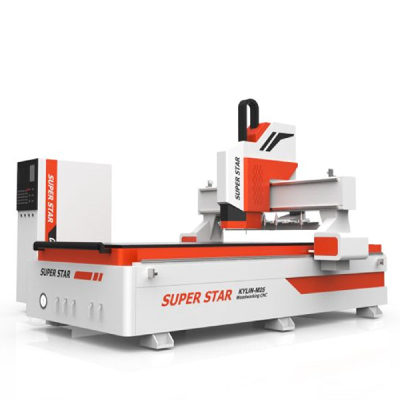

Auto changer CNC wood machine with 8 tools
Main Features:
1,Whole machine body is heavy duty, milled by high precision pentahedral milling center, only machine body weight can reach 1200kgs. Lateral Plate is Casted HT250 material, strong and steady.
2. Japan Yaskawa Servo driver and motor, fast speed, high precision
3. Taiwan Syntec control system, 8-12 carousel servo tool magazine, save tool changing time, enhance efficiency.
4. Taiwan Square Rail, stready, long lifespan. Dual nut Ball screw, high precision for cutting.
5. Taiwan High Accuracy Ball screw transmission for three axis
6. Syntec Control system, oversize protecting function to avoide mechanical collision caused by oversize design. With handwheel, easy operation. Big independent control cabinet, easy leaning and operation.
7. Automatic lubricating system, enhance cnc router lifespan.
8. Application industry: 3d waveboard making, cabinet door, painting-free door, folding screen, mass production for wood furniture.
Description & Specifications: | |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 250mm |
Table size | 1300x2500mm |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Table Surface | By suction |
X,Y ,Z Structure | XY gear wheel, Z ball screw |
Max. Power Consumption(Without spindle) | 1.84KW |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle | 9kw air cooled ATC spindle |
Spindle Speed | 0-18000r/min |
Drive Motor | China good brand servo |
Driver | China good brand servo |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC380V/60Hz |
Control System | KND control system |
Guide rail | 25 Square rail (TAIWAN BRAND:TBI) |
Control cabinet | Independent cabinet |
N.W./G.W. | 1700/1850KGS |
Packing Size | 3700*2200*1850mm |
Our Services
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time.
However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
The acessory warehouse:
(plenty of parts supply to make sure the delivery)
- Size: 15
- Place of Origin: China
- Brand Name: superstar
- Model Number: CXM1325H
- Weight: 2000.000 kg
- :
- :
Service:
before-sale: We provide machine technical consult service, make samples free for customer, recommend suitable machine according to customers application
installation and adjustment of machine: If needed, we can send technical person to your place help you install machine and adjust it very well, but need customer pay some cost to our technical person
After-sale service: We provide free training of machine operation, training can be in our factory or customer place, training content including following:
operation rules in turn on and turn off machine
keypad and some parameter explanation, parameter setting
clean and maintain machine
common occured error and its solution
some warning during machine operation
machine maintenance: We provide full after-sale service of machine, provide 12 month warranty, and maintenance for wholelife.
