- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: 1325
- Weight: 1200.000 kg

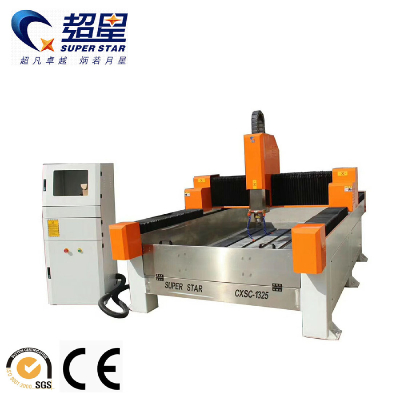

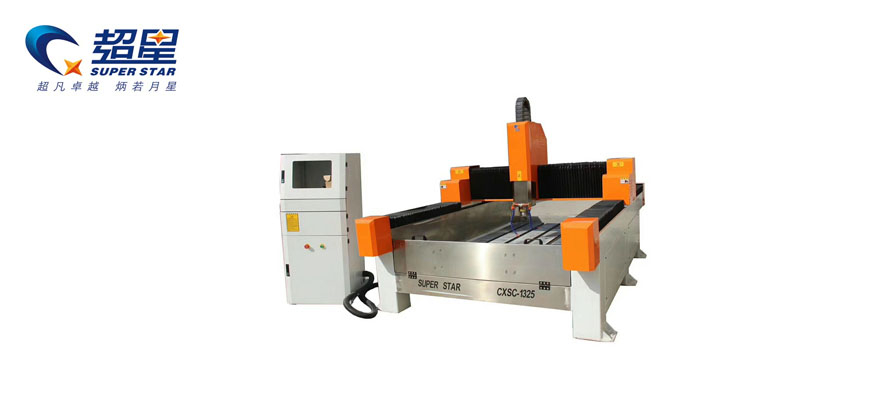

Copper engraving CNC Router1325/Stoneworking CNC machinery1325
Features
1. The product is a normal model of heavy stone flat engraving machine.
2. Machine bed adopt joist steel that improve the load-bearing capacity which can bear more than 2 tons.
3. The bed inside uses stainless steel that can greatly prolong the working life of the machine.
4. The machine uses the domestic and foreign high-end installation kit and the lathe bed gantry that made by machining center to ensure the machining accuracy of the machine.
5. The new three shaft waterproof and waterproof design, easy to remove, repair and maintenance.
Series | CXS9015 | CXS1325 |
Working area(mm) | 900x1500x300 | 2500x1300x300 |
Transportation | X /Y聽axis is rack gear,聽Z聽axis is screw | |
Spindle power | 5.5KW | |
Control system | Nc Studio/DSP | |
Command Language | G-code,HPGL 3D | |
Driver | Step motor/Servo motor | |
Machine Power | 6KW | |
Working Voltage | AC380卤10%,50HZ | |
Machine Size(mm) | 2600x1700x1600 | 3600x2100x1800 |
Weight | 1500KGS | 2000KGS |
