- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: M1325
- Weight: 1100.000 kg

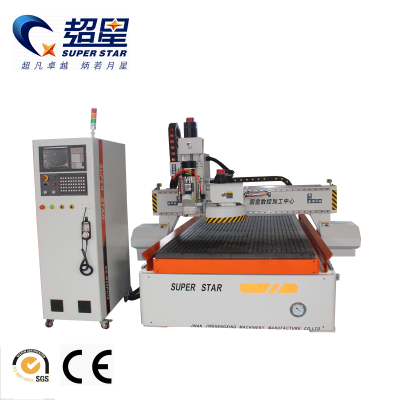

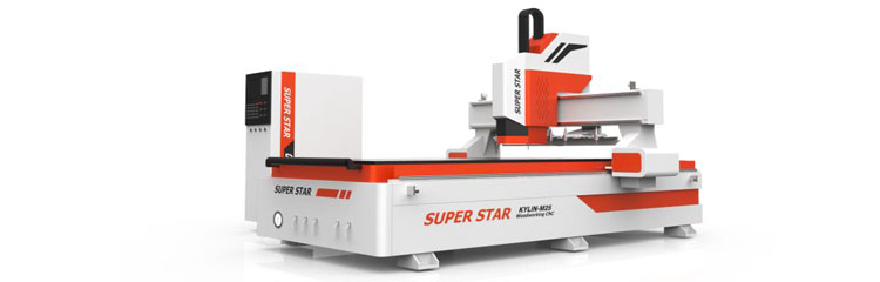

High Efficiency ATC woodworking cnc router/Super Star ATC CNC Router
Feature:
1. The imported straight-line party type guide rail,double row four row ball slide block,loading
capacity,smooth operation,high precision,long life.Import the ball screw high precision,lower knives
accurately.
2. The matching for choose NSK bearings imported from Japan's high-speed water-cooled motor.6 KW
air-cooled spindle 3.0 KW main spindle big power,stable performance.
3. On-line computer typed macro control system,adopting unique intelligent budget rules,give full play
to the motor potential and achieve high speed processing,song linear synchronous,curve more perfect.
4. Software compatibility and can be compatible type3 / Actcam /Castmate /Wentai and so no many
kinds of CAD/CAM design software.
5. Six partition vacuum adsorption mesa,can be effective in different size adsorption material.
6. By using high-speed drive stepping motor and drive,Y axis adopt double motor drive,make high-
speed operation of the 25 m/point above empty line speed,with strong cutting spindle can make the
sculpture speed more improved.
Description&Specification:
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 200mm |
Table size | 1300x2500mm |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Table Surface | By suction |
X,Y ,Z Structure | XY gear wheel, Z ball screw |
Max. Power Consumption(Without spindle) | 1840W |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle Power Motor | 3.0KW |
Spindle Speed | 0-24000r/min |
Drive System | Stepper |
Working voltage | AC220V/50Hz |
Command | G-code |
