- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: 1325

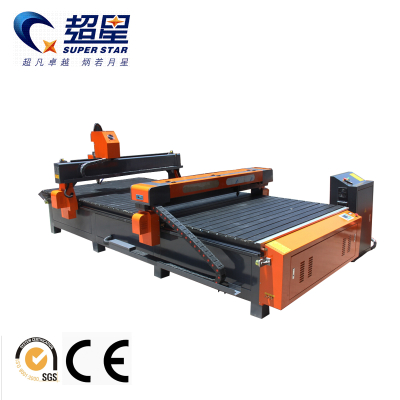

SUPER STAR CNC router and Laser machine
Advantages:
1. Adopt imported linear guiding system and ensure the machines endurability.
2. The optical lens adopt high intensity gilding silicon and non sphere focusing lens, so the lens can endure
the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The
focusing diameter of the non sphere lens is small, and make the cutting effect better.
3. Adopt DSP control system, and moves smoothly. With modularized and unified design and installment,
it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts.
4. The laser tube adopts compulsive water cooling system, cooling chiller can control the temperature automatically.
It will alarm if there is shortage of water thus ensure the continuous work of the laser tube.(optional)
5. Easily moving universal wheel
6. English and Russian control panel
7. Driver with CMOS chip imported from USA
8. Alarm which can prevent the occurrence of fire, maximize the protection of your life and property(optional)
9. Comply with CE FDA certificate
10. Aeronautic linker with convenient plug function
Technical Parameter:
Laser type | Sealed CO2 laser tube |
Laser power | 60W,80W,100W,130W,150W,200W (optional) |
Engraving area | 1300*2500mm |
Engraving speed | 0-24,000mm/min |
Resetting position accuracy | ±0.1mm |
Working voltage | AC110-220V ±10%.50-60HZ |
Power | Max 1,500W |
Operating temperature | 0-45°C |
Operating humidity | 5-95% |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | Stepper |
Cooling mode | Water-cooling and protection system |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
Controlling software | DSP control system |
Compatible software | Coreldraw auto CAD photoshop |
