- Place of Origin: JINAN
- Brand Name: superstar
- Model Number: 1325
- Weight: 1200.000 kg

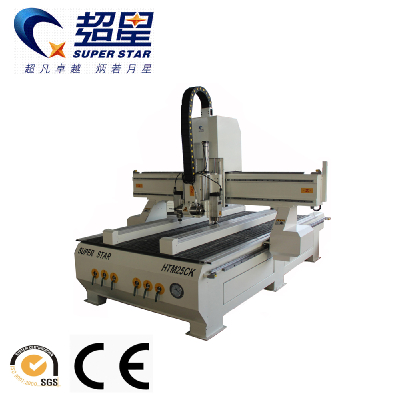

Wood door lock drilling cnc machine1325
Machine features:
1. Adopt special design with both vertical spindle and horizontal spindle. The vertical spindle can engrave and cut on surface of wood board and the horizontal one can rotate 180 degree in horizontal direction : finishing surface engraving and side drilling work on one machine ,for example: cutting ,engraving ,drilling keyholes and hinge holes on the of wooden boards. Without manual tool changing,ensuring high efficiency.
2. Y Axis with double drive motors,, with faster speed, high strength and high precision auto-tool setting.
3. Professional human control system shows advantages as continuing carving when occurring breakpoint ,off power, processing time can be forecast, back to the origin, and automatic correction function.
4. Wide compatibility CAD/CAM designing software like Type3/Art CAM/Castmate/wentai and so on.
5. High rigidity machine structure, ensures steady working and more durable.
6. Newly added rotary spindle, can finish cylinder engraving working.
Working Area (X*Y*Z) | 1300*2500*200mm (Optional) | Spindle Power | 3.5KW / 4.5KW / 6KW Air cooling (Optional) |
Control system | Nc studio / DSP (Optional) | Drive Motor | Stepper/Servo (Optional) |
Working accuracy | ±0.05mm | Repositioning accuracy | ±0.05mm |
Command language | G-code,*u00,*mmg,*plt | Table Surface | Vacuum table T-Slot |
Max. working speed | 15m/min | Max. traveling speed | 25m/min |
